Learjet 45XR
N365LP Serial Number 45-448
Airframe
4354.0 Total Hours
2976 Total Landings
Engines
Honeywell TFE 731-20BR-1B on JSSI 100%
Left Engine – S/N P-132274C
4354.0 Total Hours, 2976 Total Cycles
Right Engine – S/N P-132273C
4354.0 Total Hours, 2976 Total Cycles
Auxiliary Power Unit
Honeywell RE-100 on JSSI 100%
S/N P-486
1736.3 Total Hours, 3180 Total Starts
Avionics

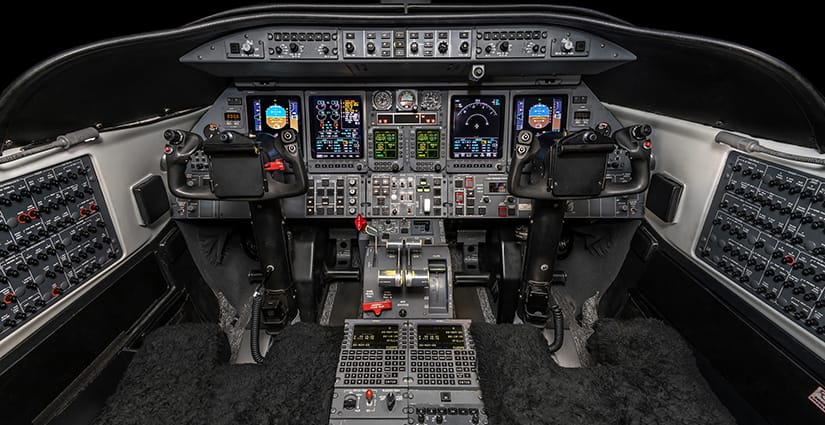

Honeywell Primus 1000 System
Four (4) Tube DU-870 EFIS Displays
Engine Instrument/Crew Alerting System (EICAS)
Honeywell CD-850 Clearance Delivery Unit
Dual Honeywell RM-855 Radio Management Units
Dual Honeywell AV-850A Audio Control Panel
Dual Honeywell RCZ-833M Integrated (8.33 MHZ) Comms
Dual Honeywell RNZ-851 Integrated Nav Units
Dual Honeywell IC-600 Integrated Avionics Computers
Dual Universal UNS-1EW FMS with WAAS
Dual Honeywell AZ-950 Air Data Computers
Dual Honeywell DA-800 Digital Acquisition Units
Dual Honeywell LCR-100 AHRS Computers
Honeywell Primus WU-660 Weather Radar
Heads Up XMD075-01 XM Weather Receiver
Honeywell RT-300 Radio Altimeter
Dual Honeywell XS-852 Mode S Transponders
Honeywell TCAS 2000 TCAS II with Change 7.0
Honeywell Mark V Enhanced GPWS
Honeywell KHF-1050 HF with Selcal
Avionics (Cont’d)
Collins ICS-200 Iridium Satcom
Aircell ATG-4000 Wi-Fi
Universal Solid State Data Transfer Unit
Honeywell SSCVR Cockpit Voice Recorder
L3 FA2100 Flight Data Recorder
Artex C406-2 Emergency Locator Transmitter
Additional Features
JSSI 100% Premium Plus Engine Program
(Currently $401.71 per engine/hr)
JSSI 100% Premium Plus APU Program
Honeywell HAPP Avionics Program
Aircell ATG-4000 Wi-Fi System
Aircell Axxess II Iridium Phone System
Airshow 410 Cabin Information System
12.1” LCD Monitor on Forward LH Bulkhead
12.1” LCD Monitor on Aft LH Bulkhead on Pull-Out Track
DVD/CD Changer
Seat Storage Drawers
Galley Rest Seat
(2) 110VAC Cabin Outlets
Cockpit Speaker Mute Switch
Dual Davtron M850 Digital Clocks
Concorde Lead Acid Batteries
Other
Two US Owners Since New
CAMP Maintenance Program
Weights
Maximum Ramp – 21,750 Lbs.
Maximum Take-off – 21,500 Lbs.
Maximum Landing – 19,200 Lbs.
Maximum 0 Fuel Weight – 16,500 Lbs.
Basic Empty Weight – 13,920 Lbs.
Interior

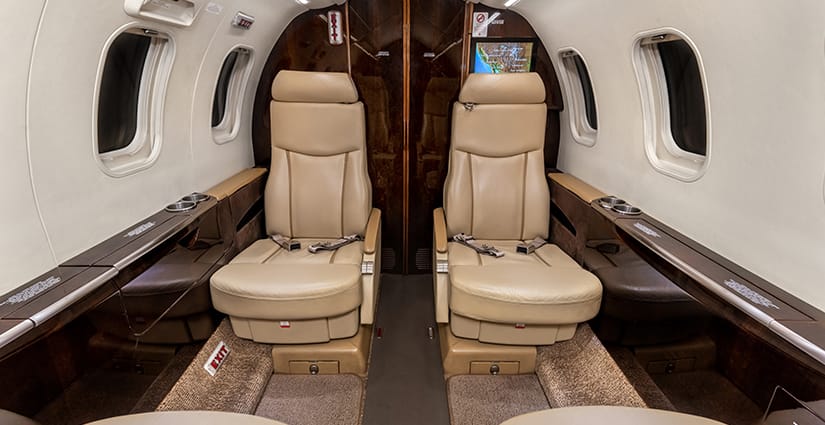

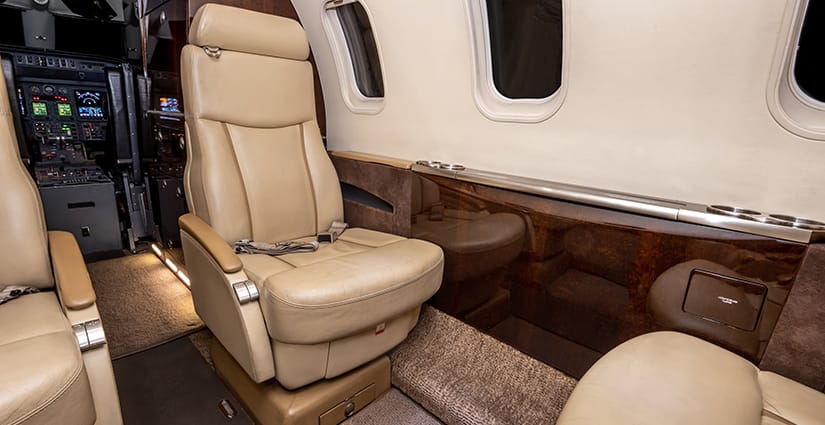

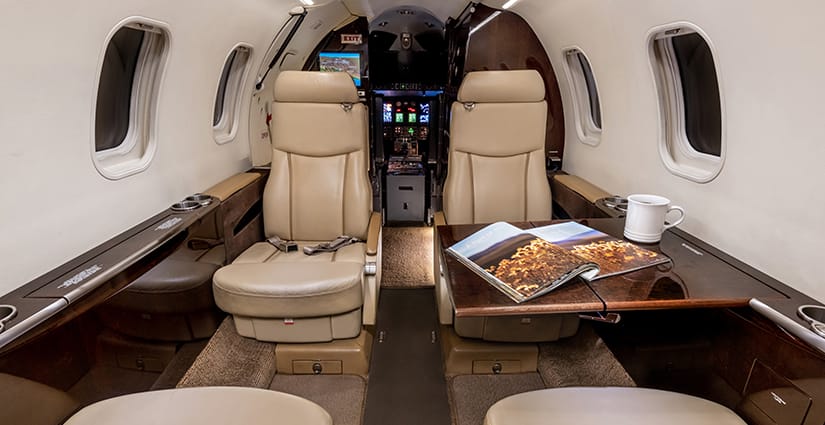

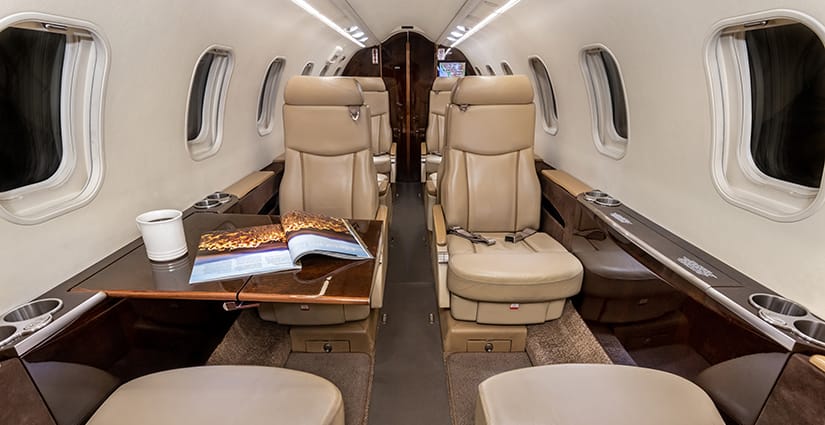

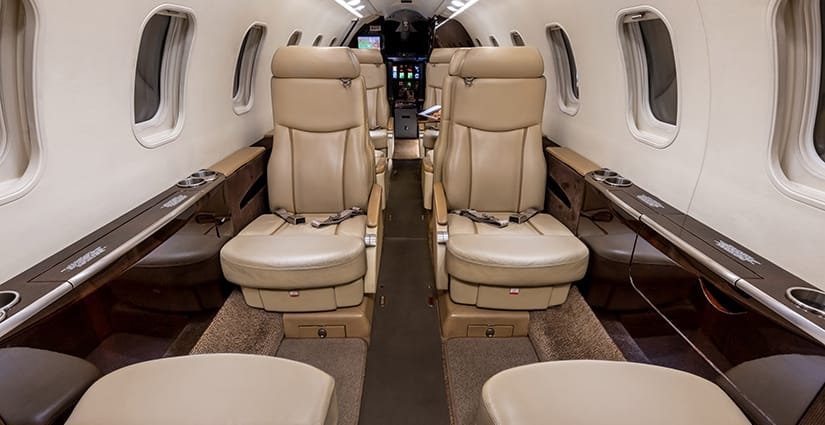

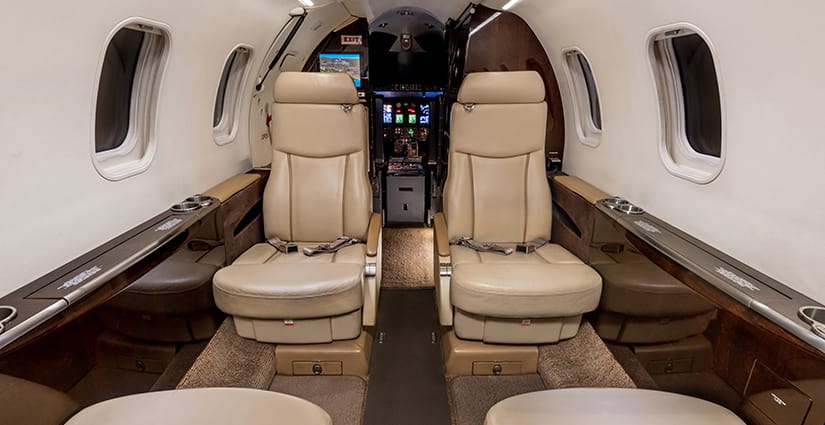

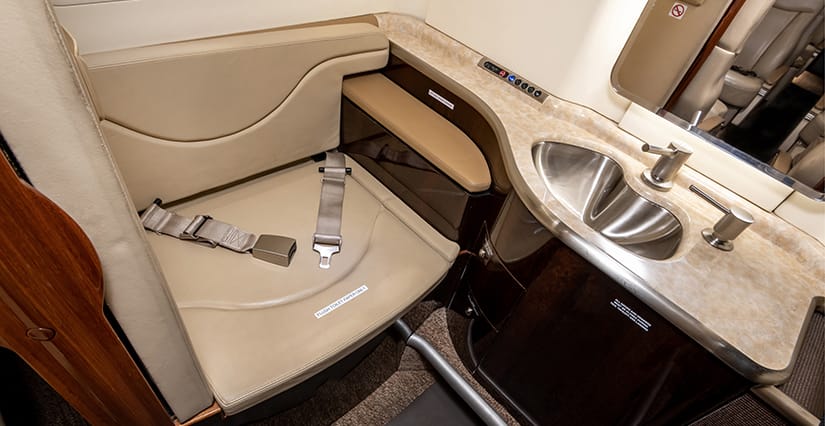

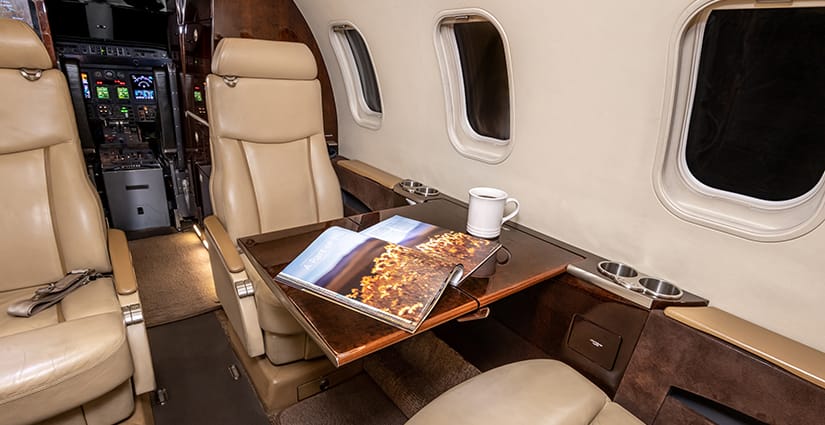

The 9 passenger interior features two four-place club arrangements and a belted lavatory seat, with seating completed in Tan leather with Java trim and accented with a Baffin Bay patterned carpet. The headliner, cabin window and accent panels are Biscuit Ultraleather complemented with Sapele Classic Vinterio veneer woodwork throughout cabin in a high-gloss finish and accented with satin nickel metal hardware. An interior baggage compartment is located opposite the aft lavatory. The forward right-hand galley features a heated liquid container, ice drawer, and various storage drawers. Passenger amenities include a 12.1” LCD monitor located in the forward left-hand bulkhead and a 12.1” LCD pull-out monitor located on the aft left-hand bulkhead that displays the Airshow 410 cabin information system, a DVD/CD changer, two 110VAC cabin outlets, and Aircell ATG-4000 Wi-Fi system.
Exterior
Overall Matterhorn White with Black Pearl tail and winglets and Black Pearl, Arc Blue Pearl, and Cumulus Gray Pearl accent stripes.
Contact Us
800.333.1680
480.998.8989
[email protected]
Specifications and/or descriptions are provided as introductory information only, and do not constitute representations or warranties of Pinnacle Aviation. Accordingly, you should rely on your own inspection of the aircraft. Subject to prior sale.
